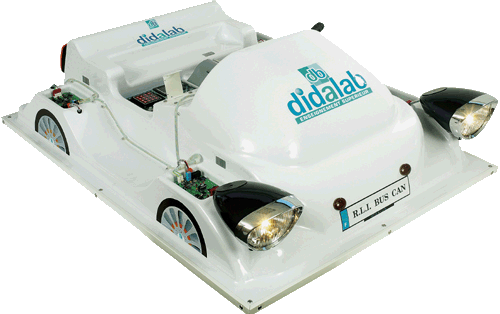

Pedagogical Multiplexed Car basic version - Training unit (ref: VMD01B)
Référence : VMD 01 B
Specifications:
The Training Multiplexed Vehicle is the perfect tool to put the student into a real development situation in Design Office.
Composition:
▪ 1 study board for the 32-bit 68332 (CPU32) microcontroller, frequency: 16.7 MHz, USB Port, RS232, PC104 Bus, 24-bit // port, 6 ADC inputs & 4 ADC outputs with editor, cross assembler, linker, debugger, technical manual.
▪ 1 inputs/outputs simulator with 40-point cable layer, USB leads, power supplies.
▪ 1 CAN bus board on PC 104.
▪ 1 board with 16-pad keypad, 7 x 16 ASCII characters display device and/or 128x64 monochrome graphic, with PC104 layer.
▪ 1 CAN bus module, 8 ON/OFF inputs & 1 analog input with supply bus lead & CAN.
▪ 1 CAN bus module, 4 ON/OFF outputs & 4 inputs with supply bus lead & CAN.
▪ 1 car modelized socket, scale 1/4, pre-fitted out.
▪ 1 set of industrial components: 1 stalk light, 2 front optical sets 30W (sidelights/headlights/full beams), 2 indicators, 2 back optical sets (stop lights/sidelights/indicators), 1 horn, each module is provided with connectors.
▪ 1 {C & C++} compiler.
Many practical works are provided with the equipment. These practical works enable a large didactical progression, from the discovery of the µcontroller, the control of inputs/outputs, serial (USB, CPI, I2C), parallel... to the skills for a CAN industrial network applied to the car industry.
| |
