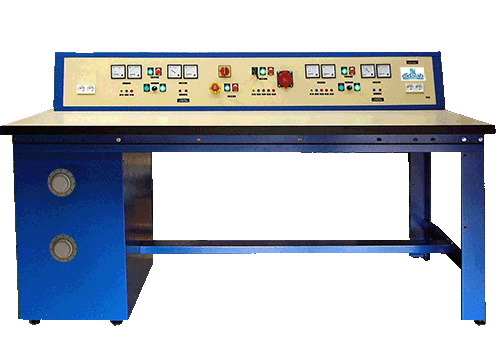

Test workbench for Electrotechnics - Power supply (ref: ELD100000)

Quantité : caddie Ajouter au devis


Référence : ELD 100 000



Test workbench for Electrotechnics - Power supply (ref: ELD100000) 2/4

Specifications:



  • Dimensions : H850 x L2000 x P1000mm,
  • 1 laminate worktop on high density chipboard, thickness 37 mm.
  • 1 technical pedestal with door equipped with a key lock for power components,
  • 1 power supply distribution panel, dimensions W1950 x D300 x H250mm with access to circuit breakers via a rear door along the entire length.
  • 1 connection pole


Mains Power Supply:
▪ Input: 400 V 3-phase + neutral + earth.


Workstation Power Supplies:

  • 1 power supply, 400-V+N+E , on Ø4-mm safety sockets
    with protection by thermal-magnetic circuit breaker 16A curve C and Control by key-operated button with spring-loaded recall with start-up indicator.
    Stop by push button.

  • 1 power supply, 230V+ N+E on 2 x 2 sockets
    with protection by 16A curve C thermal-magnetic circuit breaker, 1 power on indicator light,

  • 1 power supply, 0-430VAC-8A or 0-270VDC-16A , on Ø4-mm safety sockets
    with PD3 diode bridge rectifier and dispersion heater on three-phase transformer, equipped with:
    -Protection on AC and DC outputs by thermal-magnetic circuit breaker,
    -Controls by key-operated pushbuttons + display and stop, AC and DC source selection by switch,
    -Mandatory reset of the alternator,
    -Voltage and current visualization via analogue indicators.

  • 1 auxiliary power supply, 0-250VAC-2,5A or 0-250VDC-2,5A, on Ø4-mm safety sockets
    with graetz bridge rectification on single phase transformer and equipped with:
    -AC and DC output protection against overloads and short-circuits circuit breakers
    -Controls by key-operated pushbuttons + display and stop, AC and DC source selection by switch,
    -Mandatory reset of the alternator,
    -Voltage and current visualization via analogue indicators.
