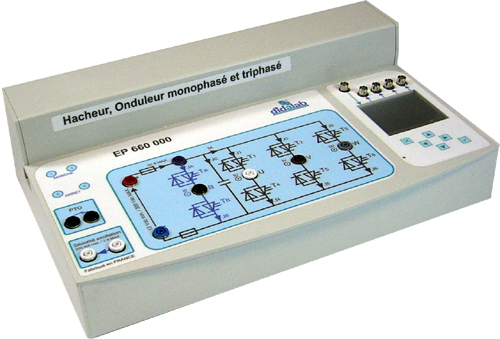

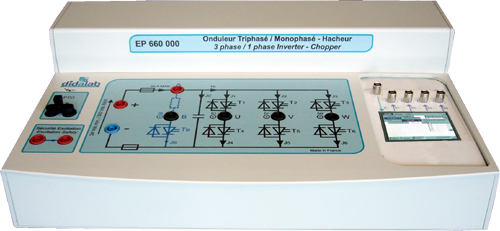

1.5/3 kW 1-/2-/4-quadrant chopper, 1-/3-phase inverter - Training module (ref: EP660000) Quantité : 1 2 3 4 5 Ajouter au devis Référence : EP 660 000 Specifications: Each branch is equipped of one insulated probe with BNC output. Chopper: ▪ Serial ▪ Voltage reversible ▪ Current reversible ▪ Four quadrants ▪ Serial mixed ( 0 +E 0 / 0 –E 0 ) Inverters: Single-phase ▪ Full-wave, shifted control, fixed frequency. ▪ Full-wave, shifted control, variable frequency. ▪ PWM +/-E, +/0/-E. Three-phase ▪ Full-wave, shifted control, fixed frequency. ▪ Full-wave, shifted control, variable frequency. ▪ PWM +/-E, +/0/-E. Closed loop control (linked with the EP 661 000 control console): ▪ Speed & position servo-control of a DC motor. ▪ Speed & position servo-control of a three-phase motor (vector control). ▪ Study of different correctors: P, PI, PID, cascade, state feedback, Z transform. ▪ Generation of new correctors by integrated C compiler.... Safety devices: ▪ Excitation current monitoring. ▪ Protection against short-circuits (short-proof, even at full load). ▪ Supervision of power supply: min 12 V / max 240 V before start. ▪ Load current control of the filter capacitor when powering up. ▪ Emergency stop if the reversible capacitor voltage exceeds 260 V. ▪ Monitoring of the current in the discharge transistor. ▪ Monitoring of the reversible capacitor voltage. ▪ Monitoring of the heat sink. Control panel: The control panel ensures the user's interface & the system control. Optional: ▪ EP560200, D_CCA: Study of the servocontrol of DC motors , ▪ EP560800, D_Scil: Automatic generator of real time correctors with Scilab/Xcos®. → speed or position servocontrol of DC motor, vectorial control of 3-phase motor...

Produits associés ou complémentaires ... D_Scil, Module for the creation of real time correctors with SCILAB/XCOS (Réf : ERD000800)    Active load, electrotechnical measurement & load generation unit for DC & AC motors (1.5 kW) - Training bench (ref: ELD151000)    AC motor 3-phase LSFMV90 (1.5 kW) - Motor (ref: ELD152000)    DC motor parted excitation MS100 (1 kW) - Motor (ref: ELD153000)    Test workbench for Electrotechnics - Power supply (ref: ELD100000)    Rheostat (220 Ohms, 3 A) - Load (ref: ELD101000)

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
