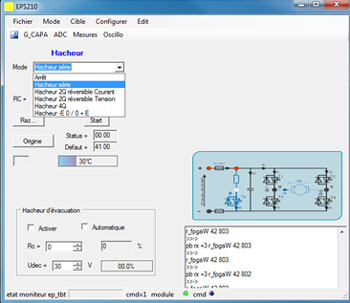

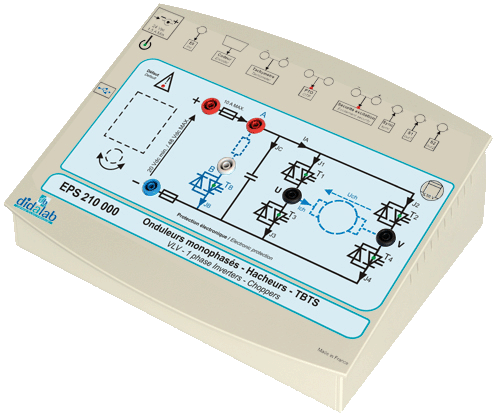

SELV 150/300 W chopper / 1-phase inverter - Training module (ref: EPS210000) Quantité : 1 2 3 4 5 Ajouter au devis Référence : EPS 210 000 Specifications: The EPS210000 is compatible with many motors. It is conceived to enable a better understanding of the basics in electrotechnics for the students, from the operating of a series converter to the creation of new control correctors as well as the 4-quadrant speed/position servo-control. ▪ Voltage range: 10 VDC → 48 VDC. ▪ Maximum peak current in each static switch: 10 A. ▪ Frequency: 1 Hz → 20 kHz. ▪ Configurable acceleration ramp. ▪ Duty cycle: 0% → 100%. ▪ Adjustable dead time. A driving and acquisition software facilitates the utilisation and understanding of the fundamental principles of the static converters. Important: ▪ For the laboratories that don't have any PC on the lab tables, an option (ref: EPS211000) enables to chose and configure the assembly to study. ▪ The EPS210 is also specially adapted for practical works as well as during a lecture to spot a particular phenomenon (via a PC + video-projector). ▪ A direct control by external electronics (+/-10 VDC) is possible for the students to implement power bridges (static control for a chopper, modulated control for an inverter). Important to specify: with this type of control, the safety devices remain active. Optional: ▪ D_CCA: software to study speed servo-control (depending on the operative part). ▪ D_Scil: rapid prototyping, creation of new correctors.

Produits associés ou complémentaires ... 300-W power supply, 1- and 3-phase & DC ; SELV    DC machine load bench, 120 W (Ref - ELD037480)

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
