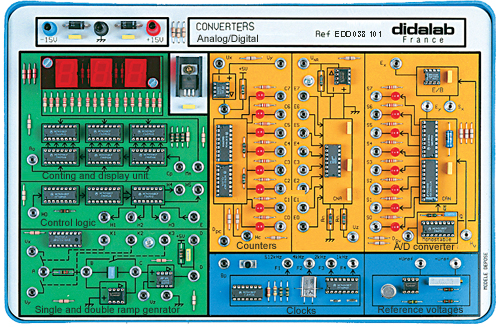

Analog-to-Digital Converters (ADC) - Training module (ref: EDD038100)

Référence : EDD 038 100

Specifications:

► Topics: Sample & Hold circuit, single & dual slope converters, counting converters, IC converters,
single & dual slope integrator, OPerational AMPlifier integrator, comparator & three analog switches.
▪ Control, counting & CMOS decoding logic for the control of analog switches.
▪ Counting unit & display device – 3-digit display with inputs: clock, reset & storage.
▪ 8-bit counter in CMOS technology – Output display by light-emitting diodes – Comparator.
▪ 8-bit ADC 08000 integrated circuit, A/D conversion including the Sample & Hold circuit & the control monostable.
▪ Quartz clock with the following output frequencies: 512, 4, 2 & 1 kHz.
▪ Bounce-free logic pushbutton for manual study.
▪ Built-in regulator with adjustable output voltage by multi-turn potentiometer & +Vref and -Vref outputs.
External power supply: +/-15V (ref. PMM 062 180).
