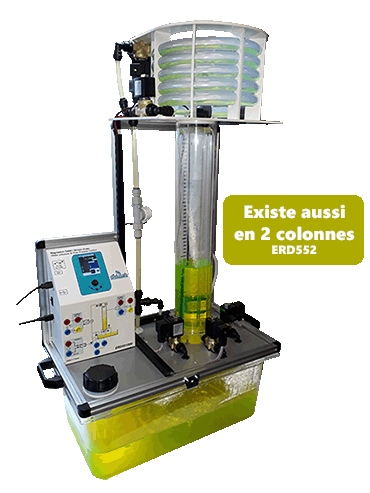

Water level and Water flow process control (ref: ERD551000)

Référence : ERD 551 000

Water level and Water flow process control (ref: ERD551000) 2/4

2 versions are available :

- Water level and water flow process control with 1 column (ref ERD551000) (here)
- Water level and water flow process control with 2 columns (ref ERD552000)

Topics:

Study of the characteristics of level and flow sensors
Identification in open loop of a level and flow process
Control with digital PID, ON/OFF correctors, fuzzy logic, Z transfrom of :
- Water flow
- Water level of 1st or 2nd order, with or without pure delay.

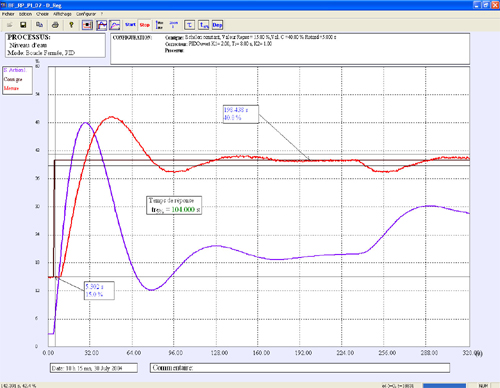

Program functions :

Selection of the system structure : open loop, closed loop for water flow, for water level.
Selection of the control type and specific values: constant step, ramp, sine, trapezoid signals.
Selection of the corrector: P/PD/PI/PID ; On/Off ; Digital; cascade control

Optional extra:
ERD550800, D_Scil : Module for prototyping with Scilab/XCOS, creation of correctors, real time, implementation in the control and acquisition module.

Télécharger la documentation complète (Haute définition).

Water level and Water flow process control (ref: ERD551000) 4/4
