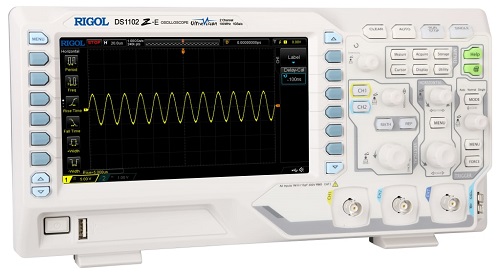

2x100-MHz Oscilloscope

Référence : EMD 018 015

2x100-MHz Oscilloscope 2/4

Technical characteristics :

Digital oscillscope, bandwidth 2x100 MHz (DS1102ZE),
Trigger: on channel 1, 2 or external,
Sampling: 1 GSa/s on 1 channel, 500 MSa/s on 2 channels,
Memory depth: 1 chanel 24 Mpts, 2 channels 12 Mpts,
Rising time: 3.5 ns,
Time base: 2 ns/div - 50s/div,
Vertical sensitivity: 0.5 mV/div - 10 V/div
Resolution 8 bits,
Mathematics functions: +, -, x, FFT, inversion.
Decode/ trigger buses: 2 (Parallel, I2C, SPI, RS232/UART)
Display: LCD 7" ; 800xRGBx480

New model (replaces EMD018010)
