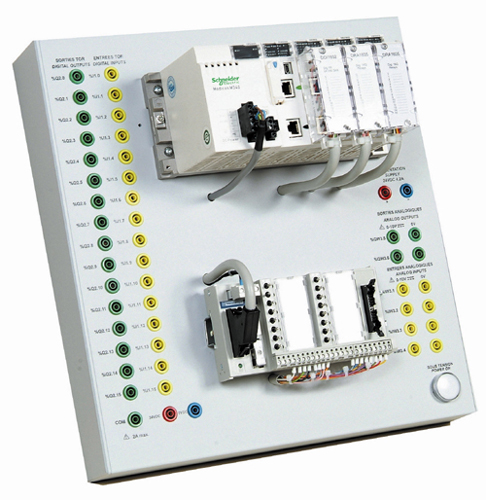

M340 PLC - Training module

Référence : ESD 002 000

Marque : Didalab / Schneider®

M340 PLC - Training module 2/4

Specifications:

► M340 Schneider® PLC with a control unit.
► 31 inputs, 21 outputs.
► 1 I/O analog simulation board.

▪ 31 inputs linked to SUB-D37 connector, 16 of which also linked to Ø 4-mm sockets.
▪ 21 inputs linked to SUB-D25 connector, 16 of which also linked to Ø 4-mm sockets.
▪ 16 mini switchs for testing the 16 first inputs linked to Sub-D and Ø 4-mm sockets.
▪ 4 analog inputs and 2 analog ouptuts linked to Ø 4 mm sockets.

▪ DB37 and DB25 connectors can be used to control the pneumatic robot (ref: ESD030000) for example.
▪ Master CAN OPEN link (for the control of the lift for example).
▪ 1 Ethernet link (not web server), USB lead (PC/PLC).

► Single user license (for installation on 1 PC (not supplied)).
► Programmation of the PLC with LD, FBD, SFC, ST & IL languages.

→ Technical manual supplied.
