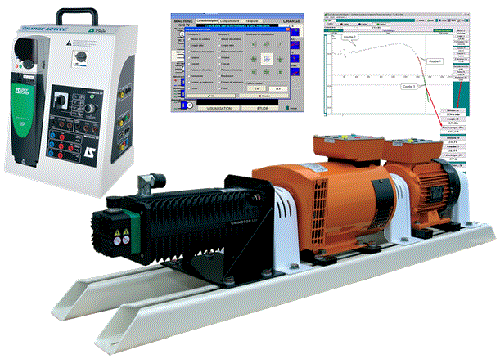

Complete 1.5-kW AC/DC Motor bench

Référence : ELD 150 B

• 1500-W active load, including:
  - Brushless motor, 1500 W with encoder,
  - Load generation unit, acquisition data system for the electrical and mechanical measures
  - Load resistance for energy drain
  - Control and acquisition sofware for PC (computer not supplied), USB cord,

• 3-phase asynchronous motor, squirrel cage, 1.5 kW, 230V 5,5A, 400V 3,2A class IE1

• Nominal speed 1500 tours/min, supplied with double shaft, each fitted with half coupling.

• DC motor, 1.5 kW, with separate excitation

• Armature: 170/420Vdc, 6,5A, Excitation: 190 Vdc, 0,4 A, upplied with double shaft, each fitted with half coupling.

• Slide rail test bed ; 1500 mm

• Support with castors
