| PARCOURIR : ACCUEIL > Electrical Engineering > Power Electronics > Range 3: 300 W Low voltage |
|
Presentation of the LV 300-W rangeBooklet showing our products for electrical machines and power electronics in the LV 300-W power range. |
|

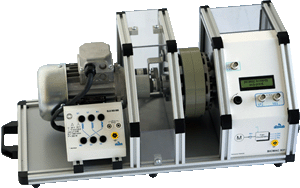

BICMAC-300 Instrumented load bench for AC or DC machines - Motor/Load benchEL310000 The load bench BICMAC- 300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard LV (170 Vdc / 240 Vac) |
|
BICSIN-300 Instrumented load bench for AC or DC machines - Motor/Load benchEL320000 The load bench BICSIN- 300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard LV (170 Vdc / 240 Vac) |
|
300-W Power supply, 3-phase AC, DC, Low VoltageEM300000 LV power supply specially designed to carry out practical works on any power electronics bridge (1-/3-phase rectifiers, choppers, 1-/3-phase inverter). Its output voltage comply with Low Voltage standard (3x220 Vac ; 340 Vdc) It is plugged on mains (1-phv 220 V, 50 Hz). |
|
1-phase, 3-phase AC controller, 300 W (Ref : EP120000)Study of: 1-phase upstream AC voltage controller: ▪ Phase-angle. 3-phase upstream AC voltage controller: ▪ Phase-angle with neutral. ▪ Phase-angle with neutral. External control: By electronic assembly +/-10 VDC |
|

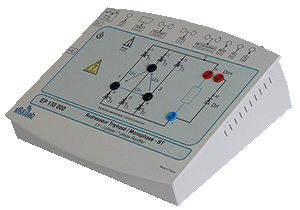

1-phase, 3-phase rectifier, 300 W (Ref : EP130000)Study of : 1-phase rectifier: -> all diodes, -> Mixed symmetric, mixed and asymmetric, -> all thyristors, -> assisted inverter. 3-phase rectifier: -> all diodes, -> Mixed, -> all thyristors, -> assisted inverter. Important : EP130 has been concieved to work with LV environment (Low voltage : 3x240 Vac Max). It is to be used for practical works or during a lecture course (with a computer and projector). Optional extra: -> D_CCA, speed control (depending of the operative part), -> EP130800, D_Scil : Module for prototyping with Scilab/XCOS, generation of real time new correctors. |
|
Chopper, 1-phase inverter, 300 W (ref: EP210000)Study of: Series and reversible choppers: ▪ Series. ▪ Voltage reversible. ▪ Current reversible. ▪ 4 quadrants. ▪ Double nested series (+E/0/–E). 1-phase inverters: ▪ Full-wave shifted control. ▪ Variable frequency: PWM +E/-E, +E/0/-E. ▪ Constant U/F. Optional: ▪ D_CCA: speed servo-control (depending on the operative part). ▪ D_Scil: simulation, rapid prototyping, creation of new correctors. |
|
Chopper, 1-phase, 3-phase inverter, 300 W (ref: EP230000)Study of: Serial Choppers, reversible: -> Serial -> Voltage reversible -> Current reversible -> Four quadrants -> Overfitted double serial (+E/0/–E) 1-phase inverter: -> Schift control full wave, -> adjustable frequency: PWM +E/-E and +E/0/-E, -> constant U/F ratio. 3-phase inverter: -> Schift control full wave, -> adjustable frequency: PWM +E/-E and +E/0/-E, -> constant U/F ratio. Important: EP230 has been concieved to work with LV environment (Low voltage : 340 Vdc Max). It is to be used for practical works or during a lecture course (with a computer and projector). Optional extra: -> D_CCA, speed and position control (depending of the operative part), -> EP230800, D_Scil : Module for prototyping with Scilab/XCOS, generation of real time new correctors. |
|
Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motorEST110000 Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control. The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Brushless motor |
|
Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motorEST120000 Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control. The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor |
|
Table for technical laboratories, ref EMO100000Suitable for all your "low voltage" electrical engineering and telecommunications laboratories Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket) |
|
Capacitive Load (ref: EPD037360)Capacitive load This module is particularly adapted to experiments in Power electronics (300 W). |
| | |
|
