Presentation of the SELV 300-W rangeBooklet showing our products for electrical machines and power electronics in the SELV 300-W power range. |
|

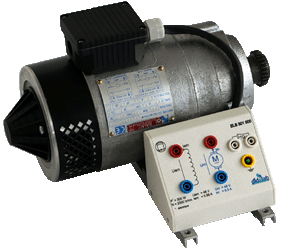

300-W / 48-Vdc motor with separate excitation, ref: ELS301000DC motor, 48 VDC, with separate excitation -> Nominal current 7.2 A, excitation 1.4 A -> Speed 2.000 r/min, torque 1.87 Nm -> Efficiency 65% |
|

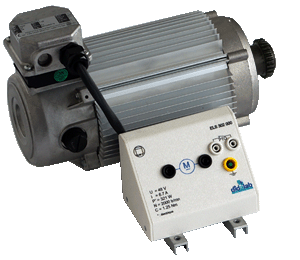

300-W / 48-Vdc motor with permanent excitation, ref: ELS302000)DC motor, 48 VDC, with permanent excitation -> Nominal current 6,7 A, -> Speed 2.000 r/min, -> Efficiency 77% |
|

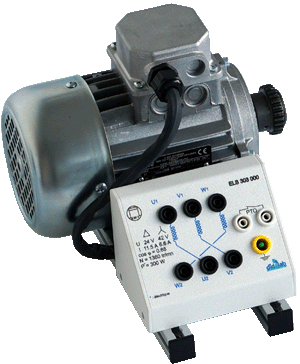

300-W / 3-phase squirrel cage asynchronous motor, ref ELS303000SELV 3-phase asynchronous motor, squirrel cage, star or delta -> Nominal pwer: 300 W -> Nominal voltage: 24/42V |
|

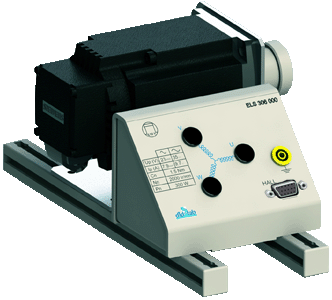

300-W / brushless motor, SELV, ref ELS306000SELV Brushless motor : -> Nominal power: 300 W, -> Brushless sine 23 V or DC trapezoid 35 V, -> Nominal currents: 7,9 Aac, 9,7 Adc, -> Speed: 2000 rd/min, |
|
BICMAC-S300 Instrumented load bench for AC or DC machines - Motor/Load benchELS310000 The load bench BICMAC- S300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard SELV « Safety Extra-Low Voltage, 48 VDC and 24 VAC », at voltage rates avoiding to use complex and expensive electrotechnic tables. |
|
BICSIN-S300 Instrumented load bench for AC or DC machines - Motor/Load benchELS320000 The load bench BICSIN- S300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard SELV « Safety Extra-Low Voltage, 48 VDC and 24 VAC », at voltage rates avoiding to use complex and expensive electrotechnic tables. |
|
Table for technical laboratories, ref EMO100000Suitable for all your "low voltage" electrical engineering and telecommunications laboratories Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket) |
|
Capacitive Load (ref: EPD037360)Capacitive load This module is particularly adapted to experiments in Power electronics (300 W). |
|
PID corrector - Training module (ref: PED020300)PID corrector monitor, enabling the carrying out of experiments on speed control with the 30-W & 120-W range modules (PED020420, EPD037580...). Each factor: P, I, D can be individually adjusted. |
|
Self - Load (ref: EPD037340)Inductive load → 5 Amps, with 5 outputs (1 → 8mH). This module is particularly adapted to experiments in Power electronics (30 & 120 W). |
| | |
|
