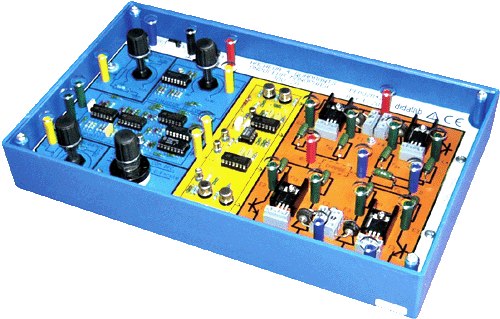

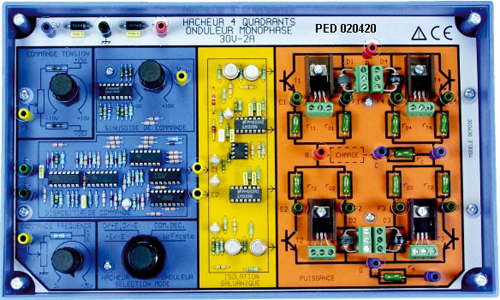

VLV 4-Q chopper / 1-phase inverter - Training module (ref: PED020420) Quantité : 1 2 3 4 5 Ajouter au devis Référence : PED 020 420 Specifications: 4-quadrant chopper operation: ▪ Supply average voltage: 30 V. ▪ Output average current: 2 Amps. ▪ Chopping maximum frequency: 2 kHz. ▪ Duty cycle linear control by DC voltage: -10V → +10V. Inverter operation: ▪ Max. modulation frequency: 2 kHz. ▪ Average current: 2 Ampspeak, 1.5 Ampseff. ▪ Maximum frequency: 100 Hz. → Topics: shifted self-controlled inverter, with pulse-width modulation, constant (U/f) control, pulse-width modulation, external sine signal voltage control, max. amplitude: 10 V & 100 Hz.

Produits associés ou complémentaires ... Manuel d'utilisation du module hacheur onduleur monophasé PED 020 420.    VLV 1-phase supply (+/-15V 500 mAmps, 0/30V 2.5 Amps) - Power supply (ref: EMD030340)    DC rotating machine 30 W - Load bench (ref: EPD037580)    Speed measurement - Module (ref: EPD037620)    AC rotating machine 30 W - Load bench (ref: EPD037820)    PID corrector - Training module (ref: PED020300)    Self - Load (ref: EPD037340)    Rheostat - Load (ref: ELD103000)

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
